Diagnostics for categorization and optimization of building structures and heat networks

Diagnostics for categorization and optimization of building structures and heat networks


Large amounts of energy are lost through building envelopes of existing buildings and within existing heat networks. In addition to thermal insulation requirements, facades also contribute to the uncontrolled distribution and absorption of noise emissions and to the heating of public spaces. In the context of further digitization of everyday life, new future information networks (e.g., 5G technologies), and the expected further densification of urban areas, additional requirements for buildings, neighborhoods, and infrastructure will arise whose effects cannot yet be fully assessed. These are thus at the heart of a sustainable and livable city of the future.

Research questions

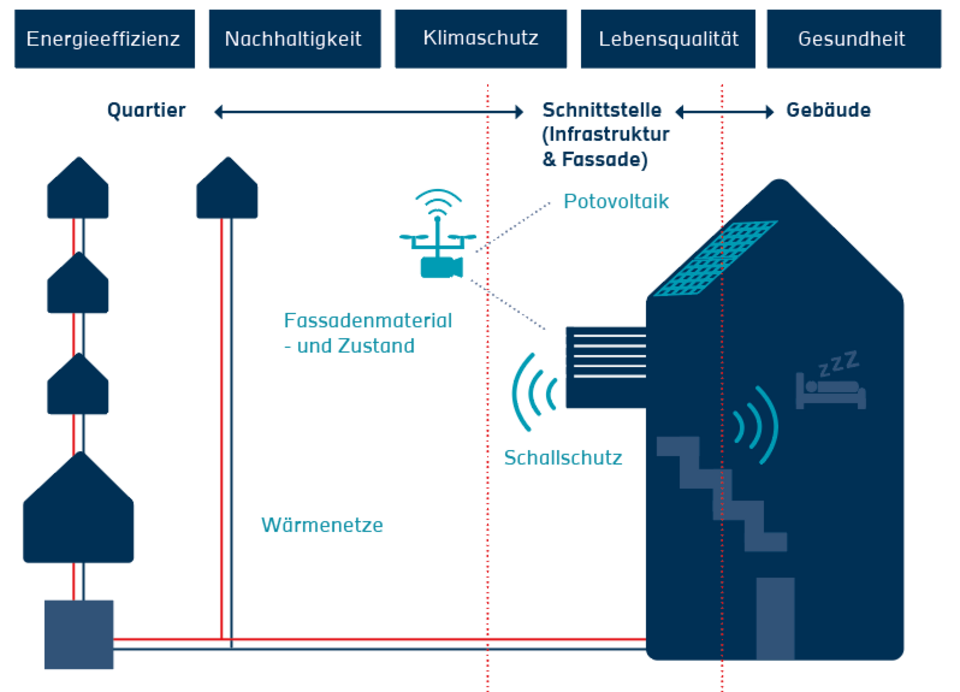

In the project "Diagnostics for the Categorization and Optimization of Building Structures and Heat Networks", new strategies and technologies of a "smart city" are developed in a transdisciplinary way. The focus is on holistic approaches for buildings, facades and energy infrastructures in the context of energy efficiency, sustainability, climate protection, quality of life and health.

Scientific approach and methods

These topics are addressed in the following three subprojects (SP):

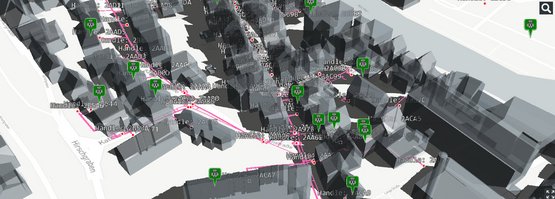

3D City Model in the area of Katharinenvorstadt, Schwäbisch Hall, with an integrated district heating network. 3D building model and district heating network visualization

SP1: Digital twin for AI-based operational optimization of heating networks

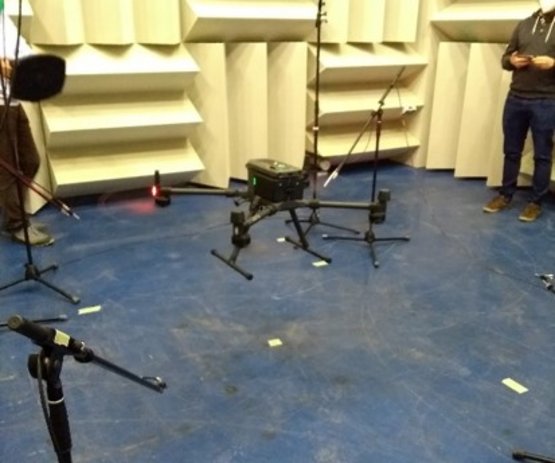

Vorbereitung des Drohnenflugs zur Bestimmung von Fassadeneigenschaften / Preparation of the drone flight for the determination of facade properties

SP2: Facade materials/facade condition of buildings by image analysis, acoustics and photogrammetry

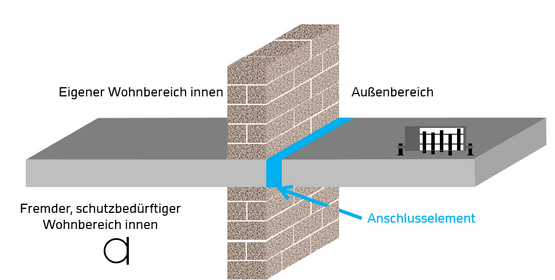

TP3: Schall- und Schwingungsschutz von Balkonen und Treppen: Darstellung der Schallübertragung über Balkone mit Entkopplungselement /SP3: Sound and vibration protection of balconies and stairs: Representation of sound transmission over balconies with decoupling element

SP3: Sound and vibration protection of balconies and stairs

In this context, new methodological approaches such as "Internet of Things" are combined with modern technologies such as "Artificial Intelligence" to form holistic solution approaches. The methods developed are standardized for further practical use by means of suitable simplification. New, innovative methods such as psychoacoustics will also be defined for evaluating the solution approaches. At the same time, potential analyses based on sensors will be carried out in several planned "case studies". In addition, numerical and empirical simulation models for prognosis will be developed and validated.

Targeted results

Development of planning tools and methods with new technologies to holistic solution approaches, which are standardized by suitable simplification for practical further use. Real-time data sets (laboratory) and potential analyses (case studies) are merged in databases and analyzed via AI processes. Simulation models for forecasting are developed and validated.

ManagementProf. Dr.-Ing. Berndt Zeitler, Prof. Dr.-Ing. Volker Coors, Prof. Dr.-Ing. Eberhard Gülch, Prof. Dr.-Ing. Gerrit Austen, Dr. Dirk Pietruschka
PartnerEnisyst GmbH, GEF Ingenieure AG, Schöck Bauteile GmbH, Beratende Ingenieure Schwing & Dr. Neureither, Stadtwerke Schwäbisch Hall GmbH

iCity: Intelligent city

Grant No.13FH9I10IA
FundingBundesministerium für Bildung und Forschung  (BMBF)

Forschung an Fachhochschulen

Call for proposal

Strong universities of applied sciences - impulse for the region (FH-Impuls)
